福建26年1批扩展台体台区识别记录
台体电源特点
==========================================================================================
HPLC CCO/STA Frequency Analysis
==========================================================================================
Log File : 福建台体实测日志-100000000001.log
Target MAC : 10:00:00:00:00:01
Match Count: 40
==========================================================================================
Time CcoFreq StaFreq Diff
------------------------------------------------------------------------------------------
20260728 15:01:57:663 49.984806 49.985603 -0.000797
20260728 15:03:32:666 49.972816 49.972816 0.000000
20260728 15:05:07:662 49.980007 49.978408 0.001599
20260728 15:06:42:663 50.005600 50.004798 0.000802
20260728 15:08:17:671 49.984806 49.985603 -0.000797
20260728 15:11:27:677 50.048046 50.048046 0.000000
20260728 15:13:02:637 49.982406 49.981605 0.000801
20260728 15:14:37:621 49.972015 49.971218 0.000797
20260728 15:16:12:661 49.977611 49.979209 -0.001598
20260728 15:17:47:643 49.992000 49.993598 -0.001598
20260728 15:19:22:632 50.004798 50.003200 0.001598
20260728 15:20:57:646 50.012001 50.010402 0.001599
20260728 15:22:32:614 50.029617 50.030418 -0.000801
20260728 15:24:07:620 50.010402 50.009601 0.000801
20260728 15:25:42:618 49.995201 49.996002 -0.000801
20260728 15:27:17:622 50.022411 50.021610 0.000801
20260728 15:28:52:606 50.042434 50.041633 0.000801
20260728 15:30:27:632 50.042434 50.040832 0.001602
20260728 15:32:02:726 50.049648 50.048847 0.000801
20260728 15:33:37:627 50.015205 50.014404 0.000801
20260728 15:35:12:575 49.975212 49.976013 -0.000801
20260728 15:36:47:609 49.972816 49.974414 -0.001598
20260728 15:38:22:583 49.982406 49.982406 0.000000
20260728 15:39:57:563 50.007999 50.007202 0.000797
20260728 15:41:32:575 50.027214 50.025611 0.001603
20260728 15:43:07:588 50.047245 50.048046 -0.000801
20260728 15:44:42:587 50.052856 50.051254 0.001602
20260728 15:46:17:588 50.045642 50.044036 0.001606
20260728 15:47:52:582 49.977611 49.976810 0.000801
20260728 15:49:27:662 50.047245 50.047245 0.000000
20260728 15:51:02:619 49.977611 49.976810 0.000801
20260728 15:52:37:570 49.992000 49.992000 0.000000
20260728 15:54:12:609 50.043235 50.040832 0.002403
20260728 15:55:47:574 50.004798 50.005600 -0.000802
20260728 15:57:22:564 49.977611 49.976810 0.000801
20260728 15:58:57:575 49.984806 49.985603 -0.000797
20260728 16:00:32:571 50.045642 50.047245 -0.001603
20260728 16:02:07:587 50.025611 50.024009 0.001602
20260728 16:03:42:564 50.042434 50.041633 0.000801
20260728 16:15:07:546 50.000000 50.000801 -0.000801
==========================================================================================
Statistics
==========================================================================================
Item Average Max Min
------------------------------------------------------------
CcoFreq 50.008856 50.052856 49.972015
StaFreq 50.008556 50.051254 49.971218
Diff 0.000301 0.002403 -0.001603
==========================================================================================
==========================================================================================
HPLC CCO/STA Frequency Analysis
==========================================================================================
Log File : 福建台体实测日志-100000000001.log
Target MAC : 12:34:56:78:90:12
Match Count: 59
==========================================================================================
Time CcoFreq StaFreq Diff
------------------------------------------------------------------------------------------
20260728 14:57:28:478 50.031219 49.987201 0.044018
20260728 15:00:18:474 50.030418 49.980808 0.049610
20260728 15:03:08:531 50.016803 49.969619 0.047184
20260728 15:04:50:490 50.012802 49.986404 0.026398
20260728 15:05:24:444 50.013603 50.026413 -0.012810
20260728 15:05:58:439 50.024009 50.021610 0.002399
20260728 15:08:48:456 50.028816 50.036827 -0.008011
20260728 15:09:52:680 50.027214 50.026413 0.000801
20260728 15:12:46:704 50.012802 50.034423 -0.021621
20260728 15:15:36:709 50.024009 50.041633 -0.017624
20260728 15:16:10:436 50.018405 49.979209 0.039196
20260728 15:16:44:421 50.020008 50.021610 -0.001602
20260728 15:17:52:448 50.020008 50.006401 0.013607
20260728 15:18:26:430 50.016006 49.995201 0.020805
20260728 15:19:34:405 50.020008 50.047245 -0.027237
20260728 15:20:08:434 50.112251 49.989601 0.122650
20260728 15:22:58:441 50.012802 50.029617 -0.016815
20260728 15:25:14:446 50.012001 49.999198 0.012803
20260728 15:25:48:432 50.020809 50.020809 0.000000
20260728 15:27:30:386 50.019207 50.043235 -0.024028
20260728 15:28:04:403 50.015205 49.966423 0.048782
20260728 15:28:38:406 50.007999 49.988803 0.019196
20260728 15:29:46:379 50.023212 49.972816 0.050396
20260728 15:30:20:384 50.012802 50.032020 -0.019218
20260728 15:30:54:379 50.021610 50.012802 0.008808
20260728 15:32:36:381 50.027214 49.978408 0.048806
20260728 15:33:10:375 50.027214 50.032821 -0.005607
20260728 15:35:26:363 50.018405 49.994400 0.024005
20260728 15:36:34:702 50.017604 49.980808 0.036796
20260728 15:37:08:361 50.021610 50.001598 0.020012
20260728 15:37:42:356 50.016803 50.040031 -0.023228
20260728 15:38:16:401 50.021610 49.969619 0.051991
20260728 15:38:50:578 50.012802 50.052055 -0.039253
20260728 15:40:32:393 50.025611 50.050449 -0.024838
20260728 15:41:06:369 50.024009 50.028816 -0.004807
20260728 15:42:14:510 50.016803 49.980007 0.036796
20260728 15:43:22:351 50.019207 50.041633 -0.022426
20260728 15:45:38:339 50.024810 49.992801 0.032009
20260728 15:46:12:343 50.019207 50.044841 -0.025634
20260728 15:46:46:340 50.012802 49.968818 0.043984
20260728 15:47:20:380 50.015205 49.977611 0.037594
20260728 15:47:54:335 50.028015 49.975212 0.052803
20260728 15:49:02:383 50.012001 50.028816 -0.016815
20260728 15:50:10:429 50.015205 50.040031 -0.024826
20260728 15:51:52:340 50.032020 50.033622 -0.001602
20260728 15:56:24:359 50.024009 50.043235 -0.019226
20260728 15:57:32:615 50.012802 49.988803 0.023999
20260728 15:58:40:351 50.012802 49.981605 0.031197
20260728 16:00:22:339 50.011203 50.046443 -0.035240
20260728 16:02:04:383 50.027214 50.024009 0.003205
20260728 16:02:38:329 50.022411 49.973613 0.048798
20260728 16:04:20:355 50.009601 49.976013 0.033588
20260728 16:07:44:314 50.015205 50.040031 -0.024826
20260728 16:09:26:512 50.025611 49.968818 0.056793
20260728 16:10:00:296 50.024009 49.991203 0.032806
20260728 16:11:08:303 50.015205 49.993598 0.021607
20260728 16:12:57:947 50.014404 50.005600 0.008804
20260728 16:14:04:228 50.020008 50.025611 -0.005603
20260728 16:15:12:251 50.027214 49.993598 0.033616
==========================================================================================
Statistics
==========================================================================================
Item Average Max Min
------------------------------------------------------------
CcoFreq 50.021083 50.112251 50.007999
StaFreq 50.008151 50.052055 49.966423
Diff 0.012932 0.122650 -0.039253
==========================================================================================

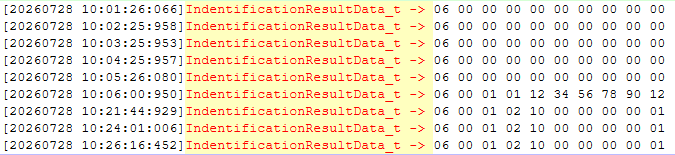

东软CCO特点
- 只能识别第一次查询的结果
- 如果第一次查询的结果不符合预期，即使后面上报的结果符合预期，CCO也不上报正确的结果
解决方案
- 调整了算法的参数，增大最小样本量个数，防止样本数量过少时结果算错
台区识别算法开源仓库地址
